66
11 triangular panels × 6 wheels
5,000 kg spread over 66 wheels; a worn panel is replaced on its own.
Car turntable specifications.
A tonne of galvanised steel. Sits on your existing floor, installed by our team in 2.5 hours, serves for decades.
- 11
- triangular panels
- 66
- wheels
- 4 × 24 V
- motors
- ≈ 1 t
- galvanised steel
- 5,000 kg
- load rating
Why YilPlat?
The turntables for cars on the market kept breaking, so in 2014 we designed our own patented rotating car platform and have sold more than 800 since. A welded turntable you replace whole; a YilPlat, by the part.
Why YilPlat?Hub, 8 arms, 11 triangular panels.
All bolted, all demountable.
The parts slot together with hand tools; with nothing welded, the platform comes down in 40 minutes and goes up in another showroom.
Top view · schematic
- 1
Hub
× 1 · tapered bearing
- 2
Arms
× 8 · radial supports
- 3
Inner and outer arcs
8 + 8 · tie the arms together
- 4
Triangular panels
× 11 · 6 wheels each = 66
- 5
Motors
× 4 · 24 V, under the ramps
- 6
Ramps
all reinforced · Ø 5.0 m
What comes out of the crate?
4 × 24 V
Motors, cross layout
In a power cut you loosen the rubber stops and turn the platform by hand.
1 + 8 + 16
Hub, arms, arcs
Tapered-bearing hub, 8 arms, 8 inner and 8 outer arcs; galvanised steel.
Ø 5.0 m
Ramps
All ramps are reinforced; the car drives on and off from any side except over the four ramps above the motor stations. Deck height 8.5 cm.
13 A
LCD control panel
Set the rotation speed once; it is saved to both remotes.
2 × 8 m
Bluetooth remotes
Your salesperson turns the car without leaving the customer's side.
About a tonne of galvanised steel.
Nothing welded shut.
Cars drive over a showroom platform every day; the worn part is replaced on its own.
100% galvanised steel frame

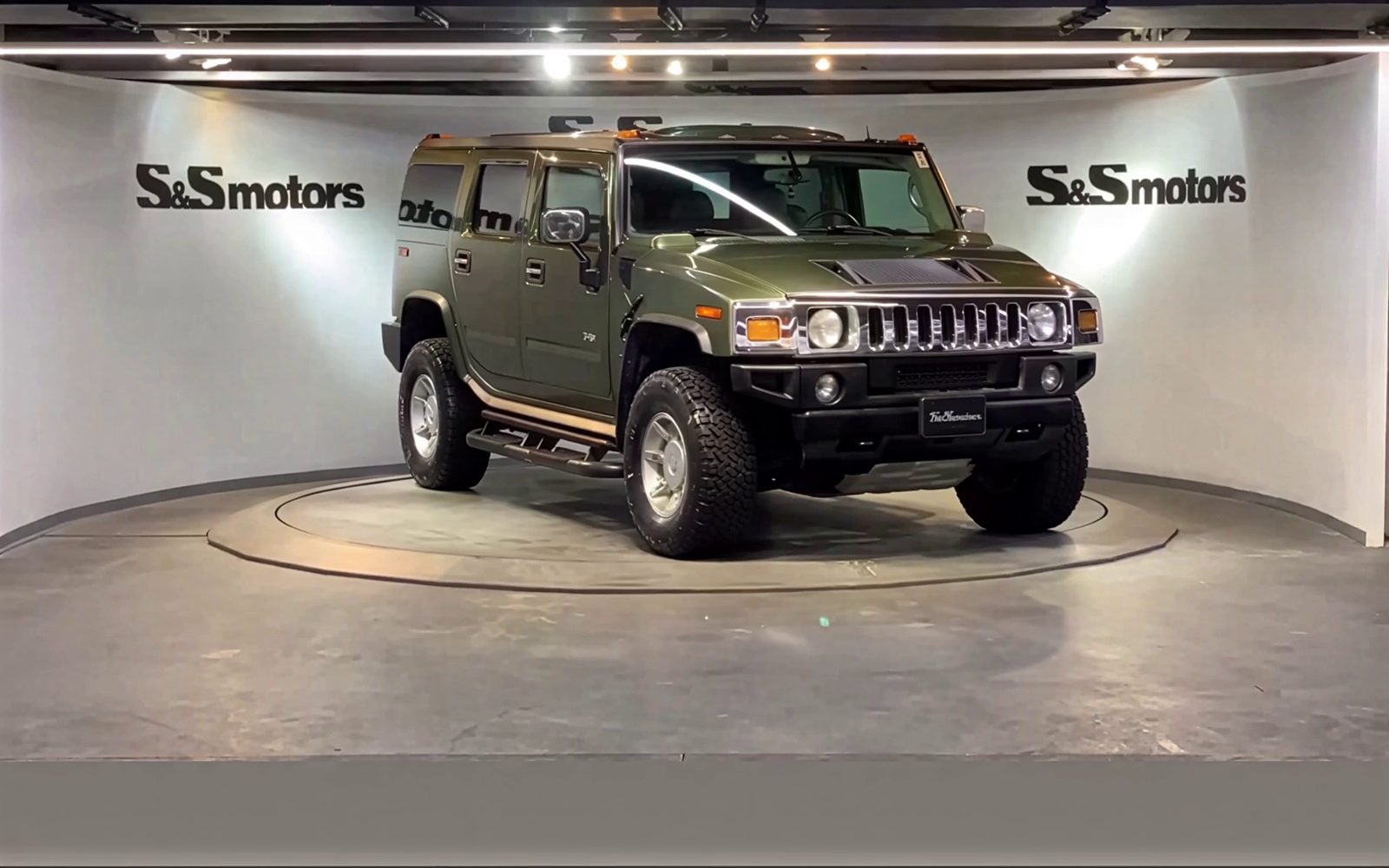

Takes a Hummer as readily as a Bentley.
Every part swaps on its own
Comes apart with hand tools; wheel, panel, motor, remote — whatever wears is what gets replaced.
Decades of service
More than 800 platforms since 2014. 2-year warranty (3 years on Atelier), CE, ISO 9001.
Move, and the platform moves with you
Down in 40 minutes, back up in 2.5 hours; no mark on the floor.
Will it fit your showroom and your car?
The plan is drawn to scale; lay it over your own floor drawing.
Will it fit?
Enter the free floor where the platform would go.
It fits. The platform sits in the middle with room to turn on every side.
The rule: 6 × 6 m, with the centre at least 3 m from every wall or column.
Send a photo for a free placement planSide elevation · to scale
Specifications
- Rotating disc
- Ø 4.3 m
- With ramps
- Ø 5.0 m
- Height
- 8.5 cm
- Floor area
- 6 × 6 m
- Hub to wall
- ≥ 3 m
- Load capacity
- 5,000 kg
- Load-bearing frame
- Galvanised steel, ≈ 1 t
- Deck panels
- 11 triangular
- Wheels
- 66 (6 per panel)
- Drive
- 4 × 24 V motors
- Power
- Standard 13 A socket
- Remotes
- 2 × Bluetooth, 8 m
- Installation
- By our team, ≈ 2.5 hours
- Dismantling
- ≈ 40 minutes
- Warranty
- 2 years (Atelier 3 years)
- Certification
- CE · ISO 9001
- Lead time
- 20 working days
Choose the colour for your showroom.
Standard colours come from the RAL catalogue; with Bespoke any RAL or Pantone tone can be matched to your brand. Logos can be laser-etched, inlaid or fully wrapped. On-screen colour is a preview.
SelectedTextured Grey · RAL 7037
Standard colours
Special finishes
Custom RAL / Pantone — your brand colour, with Bespoke
No floor works needed.
Four conditions are enough.
Level, dry, load-bearing floor
Parquet, marble, concrete or tile; the platform sits on top.
Drive on from any side
The car drives on and off from any side except over the four motor ramps; all ramps are reinforced.
At least 3 m from hub to wall
A 6 × 6 m area lets the car on the Ø 4.3 m disc rotate.
Dry car, dry floor
No standing water; maintenance is a wipe with a damp cloth.
Our technical team confirms final fit from your dimensions and photos within one working day.
Send the photo on WhatsAppYou choose the colour.
Installation: by our team, in about 2.5 hours.
Finishes
Standard finishes: 20 working days. Bespoke adds your showroom colour (RAL/Pantone), your logo and LED edge lighting.
See the finishesInstallation manual
Our team installs it in about 2.5 hours; the illustrated manual comes with every turntable.
Buy once. Use for decades.
UK launch offer: £9,750 + VAT, delivered and installed by our team, instead of £12,500 + VAT.
